Troubleshooting Under-Extrusion

Understanding Under-Extrusion in 3D Printing

What is Under-Extrusion?

In the realm of 3D printing, under-extrusion refers to a scenario where the printer fails to deliver a sufficient amount of filament during the printing process. This lack of material can lead to incomplete layers, weak structures, and overall poor-quality prints. It's crucial to understand that under-extrusion can severely impact the structural integrity and aesthetic quality of your 3D printed objects. Identifying the symptoms of under-extrusion early on can help prevent wasted time and resources on faulty prints.

The Importance of Recognizing Under-Extrusion

Recognizing and rectifying under-extrusion is vital for achieving professional-grade results in 3D printing. When under-extrusion occurs, it not only affects the appearance of your print but also its functionality. For instance, insufficient material may lead to brittleness and weak points in your finished product, compromising its durability. Moreover, consistently producing low-quality prints can discourage hobbyists and professionals alike from pursuing their projects further. Addressing under-extrusion helps ensure that each print meets expectations in terms of strength, finish, and purpose.

Why Troubleshooting is Essential

Troubleshooting under-extrusion is essential not just to salvage individual prints but to enhance your overall 3D printing experience. Identifying the root causes—be it improper printer settings, clogged nozzles, or filament issues—empowers users to take corrective measures promptly. This proactive approach can save you both time and money, allowing you to focus on what truly matters: creating innovative designs and enjoying the printing process. Additionally, resolving under-extrusion can lead to a smoother workflow, ultimately boosting your productivity and creativity.

Take Action Against Under-Extrusion

The journey towards flawless prints starts with understanding and addressing under-extrusion. Whether you are a seasoned 3D printing expert or a newcomer exploring this captivating technology, recognizing the signs and solutions for under-extrusion is a pivotal step in your printing journey. By equipping yourself with the right knowledge, not only will you enhance your prints, but you'll also expand your capabilities and confidence in the world of 3D printing.

Understanding Under-Extrusion

When it comes to 3D printing, achieving the perfect flow of filament is crucial. A common issue that many enthusiasts encounter is under-extrusion. This problem manifests when the printer fails to deliver enough filament through the nozzle, leading to incomplete layers, weak structures, and compromised aesthetic quality. Understanding the mechanics of under-extrusion and recognizing its visual signs can empower you to resolve these issues effectively.

What is Under-Extrusion?

Under-extrusion occurs when the 3D printer is unable to supply a consistent amount of filament. This can result in thin, weak parts that may not adhere properly, leading to models that are prone to breaking. The root causes of this issue can be varied, spanning from hardware malfunctions to improper slicer settings. It is essential to address under-extrusion promptly to avoid wasted materials and time.

How Does Under-Extrusion Happen?

The causes of under-extrusion can often be traced back to several factors:

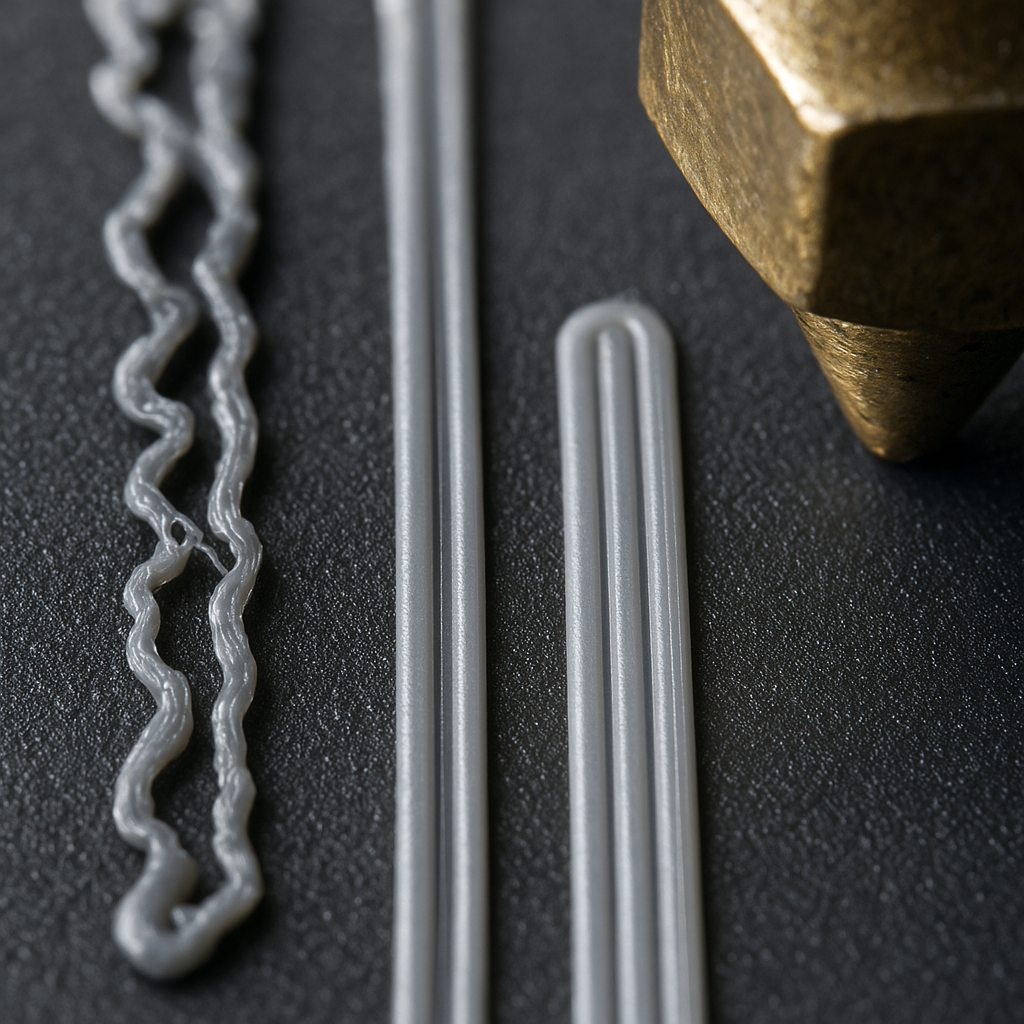

Visual Signs of Under-Extrusion

Recognizing the symptoms of under-extrusion can save you from more extensive troubleshooting later. Look for the following visual signs that indicate you're potentially dealing with this issue:

• Thin Walls: The walls of your print may appear thinner than expected, leading to structural integrity concerns.
• Inconsistent Layer Lines: Uneven layers can indicate that not enough filament is being deposited.
• Gaps and Holes: Visible gaps or holes within the print where filament should be present signify under-extrusion.
• Blobs and Zits: In certain cases, a lack of extrusion can result in blobs on the surface as the flow fluctuates.

By familiarizing yourself with the signs and causes of under-extrusion, you can quickly diagnose and rectify issues as they arise. This knowledge not only enhances your skills but also boosts your efficiency in producing high-quality 3D prints. The key to success lies in understanding these factors and continually monitoring your prints for optimal results.

Common Causes of Under-Extrusion

Understanding the intricacies of under-extrusion is crucial for any 3D printing enthusiast. When prints exhibit gaps, poor layer adhesion, or a weak structure, it often points to issues in the extrusion process. Let’s take a closer look at some of the common factors that might contribute to under-extrusion.

1. Incorrect Temperature Settings

One of the primary culprits behind under-extrusion is incorrect temperature settings. The temperature at which you print significantly affects how well the filament flows through the nozzle. If the temperature is set too low, the filament may not melt adequately, leading to clogs and inconsistent extrusion.

• Ensure the nozzle temperature is optimized for the specific filament type being used.
• Consider using a temperature tower to visually assess the performance of your filament at various temperatures.

2. Inadequate Filament Feed

Inadequate filament feed can also result in under-extrusion, often due to a variety of factors. This could stem from the spool being tangled or the filament not feeding consistently through the extrusion mechanism. Solutions include:

• Checking for tangles or snags on the filament spool.
• Inspecting the drive gear for wear or debris which can hinder grip on the filament.

3. Mechanical Issues with the Printer

Lastly, mechanical issues with the printer itself can significantly impede the extrusion process. Problems such as a clogged nozzle, worn-out parts, or poor calibration can all lead to under-extrusion scenarios. Consider the following checks:

• Regularly clean your nozzle to prevent buildup of burnt or degraded material.
• Ensure that the printer is properly calibrated, and that steps per mm are correctly configured.
• Examine belts and pulleys for any signs of wear or misalignment.

Addressing each of these factors not only enhances the quality of your prints but also improves the overall reliability of your 3D printing setup. By maintaining a keen eye on these common causes of under-extrusion, you can consistently achieve exceptional printing results.

Diagnosing the Issue

1. Observing Filament Flow

To identify the cause of under-extrusion, begin with a careful observation of the filament flow. Start the printer and pause it after a short period to inspect the filament feed. You should observe a steady stream of filament being extruded through the nozzle. If the flow is inconsistent or there are visual hiccups, this may indicate a blockage or a mechanical issue.

2. Assessing the Nozzle Condition

The condition of the nozzle plays a crucial role in extrusion. If you suspect under-extrusion, it’s advisable to inspect the nozzle for any clogs or remnants of old filament. To do this, you can:

• Heat the nozzle to the appropriate temperature for your filament type.
• Manually push filament through the nozzle to gauge resistance and flow.
• If the extrusion is blocked, consider cleaning with a fine needle or performing a cold pull.

3. Testing Extrusion Settings

Another method for diagnosing under-extrusion is to review your extrusion settings in your slicer software. Ensure that the following settings are accurate:

By adjusting these settings and running a test print, you can determine if the extrusion issues stem from inappropriate slicer configurations.

4. Checking Filament Quality

Lastly, the quality of the filament itself can greatly impact extrusion. Ensure that:

• Your filament is dry and free of moisture.
• There are no tangles or knots preventing smooth feeding.
• The diameter of the filament is consistent throughout the spool.

Run tests using different filaments if necessary to see if the problem persists to isolate if it’s an issue with the material.

By systematically following these steps, you can effectively diagnose the root cause of under-extrusion. Document your findings to refine your process and achieve optimal results for your future prints!

Recommended Solutions for Under-Extrusion

Adjusting Print Settings

One of the first steps in tackling under-extrusion is adjusting your print settings. Start by increasing the extrusion multiplier or flow rate in your slicer software. Typically, a slight increment of 5-10% can lead to better results. Additionally, consider modifying the layer height; a thicker layer can often compensate for thin lines.

“Slicing is an art, and every millimeter matters. A well-tuned printer can turn even the most challenging designs into successful prints.”

Another critical parameter is the printing temperature. If the temperature is too low, it can lead to filament not melting adequately. Test increasing your temperature in small increments to find the sweet spot for your specific filament type.

Optimizing Filament Type

Another effective strategy to combat under-extrusion is to assess your filament quality. Not all filaments are created equal! Using high-quality filament can make a significant difference in your prints. Cheap or poorly manufactured filaments often have inconsistent diameters and can clog your nozzle, leading to under-extrusion issues.

Furthermore, pay attention to the moisture content of your filament. Filaments like PLA and nylon can absorb moisture from the air, which can cause printing issues. Store your filaments in a dry place or use a filament dryer to maintain optimal condition for your materials.

Maintenance Tips for the 3D Printer

No amount of tweaking will fix under-extrusion if your printer isn’t in top shape. Regular maintenance is crucial. Start by cleaning the nozzle regularly to prevent any buildup that can disrupt filament flow. A simple needle or cleaning filament can help keep the nozzle free from clogs.

Additionally, check and adjust the extruder tension. An improperly calibrated or loose extruder can fail to grip the filament correctly, leading to inconsistent extrusion. Ensure that your extruder gears are cleaned and functioning smoothly for optimal performance.

“A well-maintained printer not only produces better results but also prolongs its life. Invest time in your machine, and it will pay you back with flawless prints.”

Finally, don’t forget to inspect the entire filament path, including the drive gear and Bowden tube (if applicable). Replacing worn-out parts can often resolve persistent under-extrusion problems.

Preventative Measures Against Under-Extrusion

Regular Maintenance is Key

One of the most effective preventative measures against under-extrusion is a consistent maintenance routine for your 3D printer. Regularly cleaning the nozzle and ensuring that the feeding mechanism is free from debris can dramatically enhance performance. Accumulated dust and filament remnants can obstruct the flow of filament, contributing to under-extrusion issues. It’s also crucial to periodically check the gears and the extruder motor for any wear and tear. Replacing worn parts promptly helps in maintaining optimal printer performance.

Optimizing Print Settings

Another vital strategy is to adjust your print settings appropriately. Ensure that your extrusion multiplier is set correctly; this can often be achieved by running a test print to determine the ideal flow rate for your specific filament. Experimenting with settings such as print speed, layer height, and temperature can prevent under-extrusion as well. Higher speeds may not allow enough time for the filament to melt and flow properly, leading to inconsistent extrusion.

Choosing Quality Materials

The choice of filament also plays a significant role in preventing under-extrusion. Always opt for high-quality materials from reputable manufacturers. Filament that is inconsistent in diameter can result in blockage and poor extrusion. Furthermore, store your filament properly to prevent moisture absorption, which can degrade quality. For example, using vacuum-sealed bags or containers can mitigate potential dampness and ensure smooth printing. Regularly checking the filament diameter and ensuring it aligns with your printer's specifications will further help maintain a steady flow during prints.

Keeping an Eye on the Filament Path

The filament path should be free of obstructions; ensure that the filament feeds smoothly into the extruder without any sharp bends or kinks. Any resistance along the path can increase the chances of under-extrusion. Consider upgrading to a direct drive system which can often eliminate such issues by minimizing the distance between the motor and the hotend. Additionally, using filament guides can ensure a smooth and straight filament feed, further reducing the risk of jamming or under-extrusion.

Conducting Regular Calibration

Lastly, regularly calibrating your printer is essential. This involves checking the extruder steps per millimeter and ensuring that your bed leveling is accurate. An improperly calibrated printer can lead to inconsistent extrusion, affecting overall print quality. Schedule a calibration session before starting new projects, especially when switching between different filament types or brands. Not only will this avoid potential issues, but it will also enhance the quality of your prints.

By implementing these strategies and best practices, you'll not only reduce the risk of under-extrusion but also elevate the overall performance of your 3D printing projects. What measures have you found most effective in preventing under-extrusion in your prints? Share your experiences in the comments below!

Conclusion

As we draw our exploration of under-extrusion to a close, it's vital to reflect on the significance of promptly addressing this prevalent issue. Under-extrusion not only impacts the aesthetics of your prints but can also lead to structural weaknesses, creating finished products that don't meet your quality expectations. By actively recognizing and rectifying the signs of under-extrusion, you can significantly enhance the performance and reliability of your 3D printing projects.

The Importance of Timely Intervention

Ignoring under-extrusion can result in wasted time and materials, leading to frustration and disappointment. By understanding the symptoms and applying corrective measures, you can ensure your prints are not only visually appealing but also durable.

“Good quality prints require good practices. Addressing under-extrusion ensures that your creativity is only limited by your imagination, not by your equipment.”

Implementing Practical Solutions

The tips and tricks shared throughout this blog provide a solid framework for tackling under-extrusion. Whether it's adjusting your print speed, ensuring proper filament type, or maintaining your nozzle health, implementing these strategies is key. Take a moment to evaluate your current setup against these tips, and experiment with adjustments to see substantial improvements in your print quality.

Join the Community Conversation

Troubleshooting under-extrusion can often feel isolating, but it doesn't have to be. By sharing your experiences on forums or social media, you can contribute to a community-driven approach to problem-solving. Your insights may help a fellow enthusiast who’s encountering similar hurdles. Encourage others to discuss their findings, successes, and even failures. Collaboratively, we can cultivate an environment rich in knowledge and creativity in the 3D printing space.

In summary, addressing under-extrusion is not just about preserving the integrity of your prints—it’s about enhancing your printing journey and building a community of learners and doers. Let’s commit to addressing issues together, sharing our triumphs, and continually improving the art of 3D printing!
