Understanding Print Warping: Causes and Solutions for Perfect Prints

Understanding Print Warping: Introduction

What is Print Warping?

In the realm of 3D printing, print warping refers to the deformation of a printed object during or after the printing process. It is a common issue where the corners or edges of a print lift off the build platform, resulting in distorted or unusable models. This phenomenon typically occurs due to variations in temperature, material properties, and the lack of proper adhesion to the printing surface. Understanding how print warping manifests is vital for anyone looking to produce high-quality 3D prints, as its impact can compromise not only the aesthetic appeal but also the functionality of the final product.

Significance of Print Warping in the 3D Printing Process

The significance of addressing print warping cannot be overstated. In commercial and hobbyist realms alike, warping can lead to wasted materials and time, increase production costs, and inevitably cause frustration among users. For professionals relying on 3D printing for prototypes or end-use parts, warping can adversely affect product integrity and lead to costly reprints. Therefore, recognizing the underlying causes and implementing preventive measures are crucial steps toward achieving flawless prints and maintaining efficiency in the printing process.

Goals of This Blog Post

The primary goal of this blog post is to equip readers with a comprehensive understanding of print warping, covering both its causes and effective solutions. By delving deep into the factors that contribute to this issue, we will highlight how temperature fluctuations, material choices, and environmental conditions play pivotal roles in print stability. Additionally, the post will offer practical solutions to mitigate warping, ensuring readers can achieve optimal results in their 3D printing endeavors. Whether you are a seasoned professional or a novice, this guide aims to empower you with the knowledge you need to conquer print warping once and for all.

What is Print Warping?

As we dive deeper into the intricacies of 3D printing, it's crucial to address one of the most common issues faced by enthusiasts and professionals alike: print warping. Understanding this phenomenon is essential for achieving perfect prints. Print warping refers to the deformation that occurs during the cooling process of a printed object, causing the edges of the print to lift off the build platform. It's a prevalent issue, particularly with materials that have high thermal expansion coefficients.

How Print Warping Manifests

Print warping typically manifests as uneven layers and a distorted shape of the final product, significantly impacting the print's overall aesthetic and functionality. This issue is particularly evident during the initial layers, where the adhesion to the print bed is vital for successful fabrication. Below are common visual examples that illustrate the effects of warping:

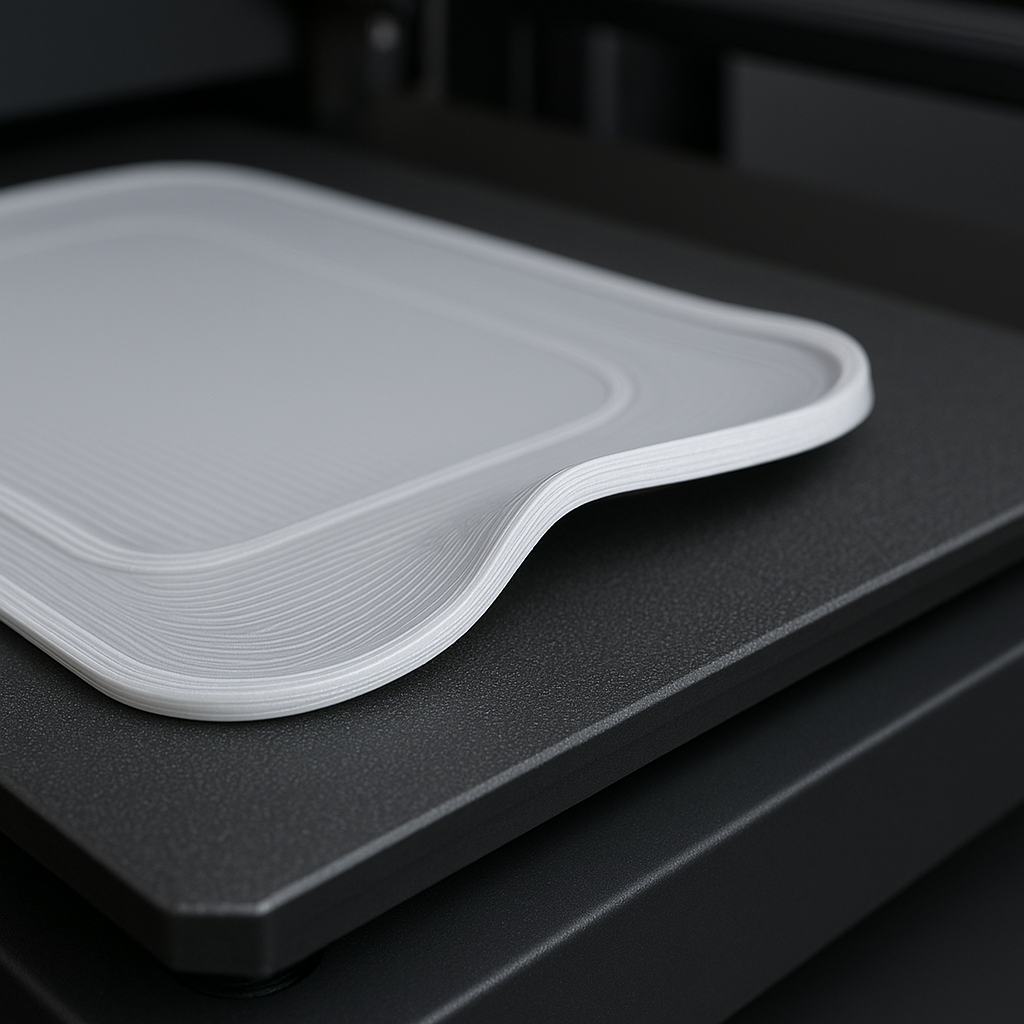

• Lifted Corners: This is characterized by corners or edges that curl upwards, creating a gap between the print and the bed.
• Uneven Surfaces: The layers may appear misaligned, leading to aesthetic flaws and potential issues during assembly.
• Cross-sectional Shrinkage: Cross-sections may reveal areas where material has contracted, highlighting inconsistencies in width or thickness.

It's important to note that print warping can lead to failed prints, requiring users to restart the printing process. This not only wastes time but also material, making it imperative to understand the causes and solutions to mitigate this issue going forward.

Common Materials Affected by Warping

Certain materials are more prone to warping, often due to their thermal properties. Here are some key materials that frequently encounter this issue:

• ABS (Acrylonitrile Butadiene Styrene): Known for its strength, it also has a high tendency to warp due to significant temperature fluctuations.
• PLA (Polylactic Acid): While it's more stable than ABS, improper cooling can still trigger warping.
• PETG (Polyethylene Terephthalate Glycol): This material can warp under rapid cooling conditions, particularly in larger prints.

Understanding print warping is not only about identifying the issue but also about recognizing its potential impact on the printing process. By being aware of how it manifests and the materials affected, 3D printing enthusiasts can take proactive steps to ensure better adhesion, optimal temperature settings, and ultimately, a more successful printing experience.

Common Causes of Print Warping

Temperature Fluctuations

One of the most significant factors contributing to print warping is temperature fluctuations. 3D printing requires a controlled thermal environment to ensure that the material adheres properly to the print bed and retains its shape throughout the printing process. If the ambient temperature is too low, this can cause the material to cool too quickly, leading to a contraction of the material and subsequent warping. Similarly, if the printer's nozzle temperature varies during the print, this can also result in inconsistent layers, often leading to warping. Maintaining a stable temperature is crucial for achieving that perfect print!

Improper Adhesion to the Print Bed

Another common cause of warping stems from improper adhesion to the print bed. For 3D prints to remain stable and distort-free, they need to be securely attached to the bed during the entire printing process. Insufficient adhesion can cause the edges of the print to lift, leading to warping. This issue can often be resolved by using adhesives such as glue sticks or dedicated 3D printing adhesion products, and making sure the print bed is leveled properly. Ensuring your print bed is clean and properly prepared before printing can make a world of difference.

Material Choice

The material choice in 3D printing also plays a critical role in the propensity for warping. Different materials have unique thermal properties, meaning they respond differently to temperature changes. For instance, ABS is notorious for warping due to its high shrinkage rate when cooling. On the other hand, materials like PLA and PETG typically exhibit less warping. When selecting materials, it's essential to consider these properties and choose ones that are compatible with your printer and intended use. Understanding the characteristics of the filament you choose can significantly impact the end result.

Environmental Conditions

Lastly, environmental conditions surrounding the printer can contribute to print warping. Factors such as drafts, humidity, and room temperature can all affect print quality. For example, if the printer is positioned near an air vent or an open window, varying air currents can cause uneven cooling and potential warping of the print. To mitigate these risks, it’s advisable to place your 3D printer in a location with minimal airflow and fixed temperature conditions. This will create a conducive environment for achieving consistent, high-quality prints.

Printable Summary Table of Factors Leading to Print Warping

Understanding these common causes of print warping can significantly enhance your 3D printing experience. By addressing these factors upfront, you can achieve smoother, more professional prints that meet your expectations. Have you experienced print warping? Share your solutions and tips in the comments below!

Impact of Print Warping on Quality

The challenge of print warping goes beyond mere aesthetics; it significantly influences the overall quality of the final product. Understanding the multifaceted impact of warping is essential for producing prints that not only look good but also perform well in their intended applications.

Structural Integrity

First and foremost, print warping can undermine the structural integrity of a printed object. When layers of material warp, they can either shift misaligned or fail to adhere properly. This can lead to weaknesses in the structure, resulting in increased susceptibility to breaks or fractures during use. For instance, in functional prototypes or components, warping can compromise load-bearing capabilities, which is crucial in applications where strength and durability are paramount.

Aesthetic Appeal

The appearance of a printed piece is just as critical as its functionality. Warped prints often exhibit visible defects such as uneven surfaces, gaps, and misaligned features, which can detract from the overall look. Particularly in industries like custom design, where visual impact is essential, warping can lead to dissatisfaction and the need for reprints, increasing both time and costs. Maintaining an uncompromised aesthetic is vital for products marketed for consumers who prioritize visual excellence.

Functionality in Application

Lastly, the functionality of the final product can be severely affected by warping. Consider mechanical parts, connectors, or enclosures; even slight warps can hinder their ability to fit together properly or operate as intended. This is particularly critical in engineering and manufacturing applications, where precision is key. If a part does not fit correctly due to warping, it can lead to malfunction or failure, with implications that can cascade through an entire assembly line or end product.

In summary, understanding the impact of print warping is essential for achieving not only high-quality aesthetics but also superior functionality and structural integrity in printed objects. Addressing the causes of warping before the printing process is a proactive step that every designer and manufacturer should prioritize.

Solutions for Existing Warped Prints

For those grappling with warped prints, the good news is that there are viable solutions available to help restore your print quality. It's crucial to approach the issue with a combination of techniques designed to address the different aspects of warping. Below, we explore effective methods you can implement to fix prints that have already warped.

Reprinting Techniques

In some cases, reprinting may be the simplest and most effective solution to deal with warped prints. Before you hit print again, consider adjusting your printer settings. Ensure that you select the appropriate material type and temperature settings that match your specific filament. Additionally, if you're using a heated bed, make sure it’s preheated to the recommended temperature to help adhere the first layer properly.

"Sometimes the best resolution to a warped print is to revisit the fundamental settings that directly impact adhesion, like bed temperature and nozzle settings." – 3D Printing Expert

Heat Adjustments

Another efficient method to combat existing warping is through heat adjustments. Carefully applying heat to the warped areas can allow the material to become pliable again, enabling you to reshape it. Using a heat gun or a hairdryer at a low setting, you can gently warm the affected areas. However, be cautious; excessive heat can lead to further warping or ruining the print altogether, so maintain a safe distance and apply heat gradually, checking the progress.

Post-Processing Methods

Post-processing solutions, such as sanding or using a filler, can effectively mask or correct print warping issues. For minor warping, a flat sanding block can help smooth out uneven surfaces. Alternatively, applying a thin layer of epoxy resin or a similar filler can not only hide imperfections but also add structural integrity to the print. These methods are particularly useful for aesthetic models or non-functional pieces, where perfect dimensions are less critical.

Utilizing these strategies not only allows you to salvage a warped print but also offers valuable lessons to improve future print outcomes. Remember, preventing warping starts with the right settings and environment, but should a print come out imperfectly, there's always a way to rectify it with a thoughtful approach.

Future Trends in Minimizing Print Warping

Innovations in Materials

As the demand for high-quality prints continues to grow, research into innovative materials is rapidly advancing. Recent studies have shown that new formulations of filaments with enhanced thermal stability can significantly reduce the chances of warping. For instance, materials like high-performance polycarbonate and specially designed blends of ABS and PLA are emerging, boasting lower shrinkage rates during cooling. These developments promise greater reliability for both hobbyists and professionals striving for precision in their printed projects.

Advancements in Printer Technology

In tandem with material innovations, the evolution of 3D printer technology plays a crucial role in minimizing print warping. Next-generation printers are being equipped with advanced temperature controls and improved airflow management systems to maintain optimal conditions throughout the printing process. Furthermore, the integration of artificial intelligence allows printers to automatically adjust settings based on real-time feedback, ensuring consistent results and significantly reducing the risk of deformation.

Smart Slicing Software

The emergence of smart slicing software is another exciting trend in the fight against print warping. By utilizing sophisticated algorithms, these programs can analyze the geometry of a model and optimize the print parameters accordingly. Factors such as layer height, infill density, and print speed can be adjusted to mitigate the impact of warping, leading to a smoother and more successful printing experience. Users can expect greater customization with these tools, allowing for tailored settings that match the unique characteristics of different materials.

Community and Collaborative Efforts

The growing 3D printing community is a vibrant hub for sharing knowledge and best practices aimed at reducing print warping. Collaborative efforts among companies, educational institutions, and enthusiasts are giving rise to workshops and research projects focused on understanding the underlying causes of warping. This collective approach fosters innovation as participants share real-world challenges and solutions, leading to breakthroughs that benefit the wider industry.

The Role of Data and Analytics

Lastly, the incorporation of big data analytics into 3D printing workflows is on the rise. By collecting and analyzing data from previous print projects, manufacturers can identify trends in warping incidents and modify their processes accordingly. This analytical approach not only enhances the quality of individual prints but also contributes to the development of protocols that improve overall manufacturing efficiency and product fidelity.

In conclusion, the future of minimizing print warping looks promising thanks to ongoing research and innovative technologies. As materials, printer capabilities, and software evolve, the potential for achieving flawless prints continues to expand, ensuring that both new and experienced users can create with confidence.
